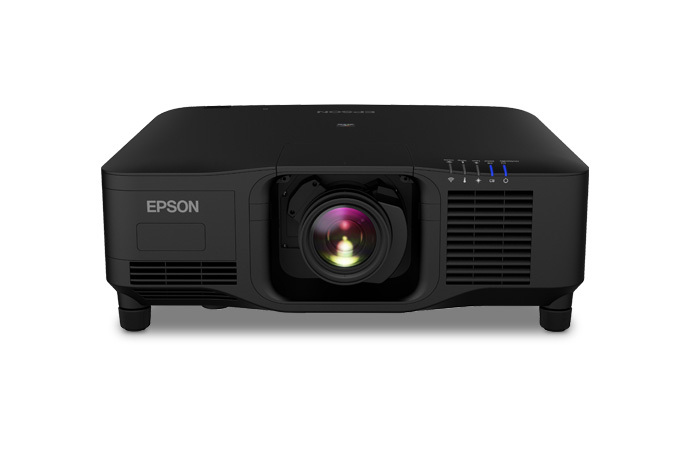

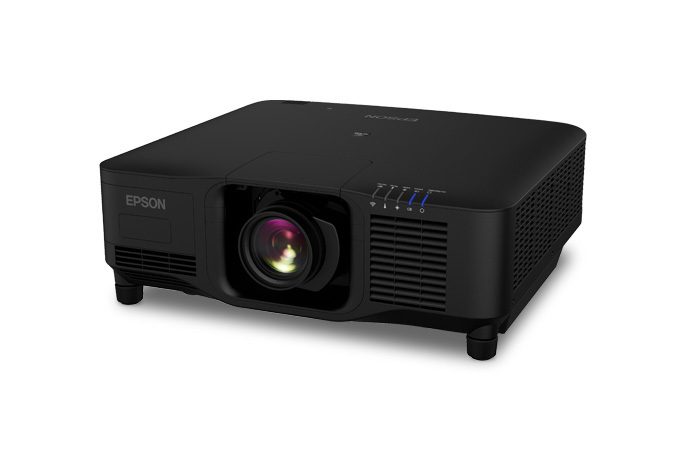

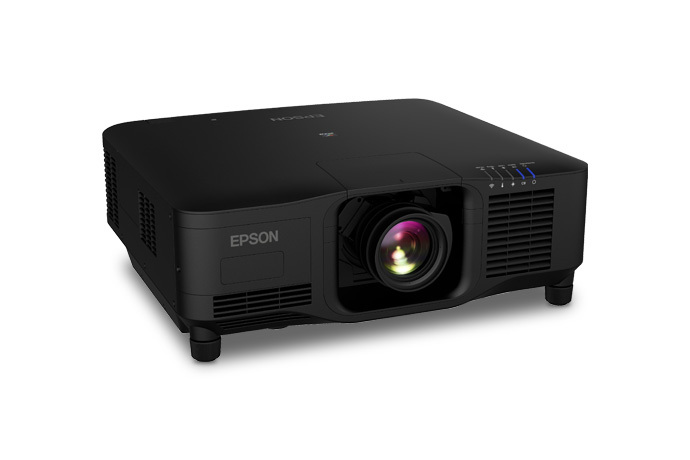

EB-PQ2220B

About EB-PQ2220B

The Epson EB-PQ2220B sits at the top of the 2024 EB-PQ large-venue family. It is a 20,000-lumen black-chassis 4K laser projector intended for buyers building very large images for live events, theaters, auditoriums, immersive attractions and other professional installations. This is not a projector to choose simply because its brightness number is impressive: it is an interchangeable-lens platform whose real value appears when a project needs high output, flexible optics and professional multi-projector tools.

What does the EB-PQ2220B deliver?

Epson rates the EB-PQ2220B at 20,000 lumens of equal color and white brightness. The projector combines 3-chip 3LCD imaging with Epson's 4K Crystal Motion technology to produce 4K resolution on screen. Epson also lists frame interpolation, HDR support and scene adaptive gamma correction for demanding video and visual-content work.

The laser light source is rated for up to 20,000 hours of virtually maintenance-free operation. For venues where downtime and dust are serious concerns, this tier also uses a filterless cabinet, an IP5X-rated hermetically sealed optical and light-source unit and liquid cooling.

Why would a venue choose the 20,000-lumen model?

The EB-PQ2220B makes sense when a lower-brightness projector would force too many compromises in screen size, ambient light or multi-projector design. Epson has demonstrated this model for theater and scenic projection, where large backdrops and immersive visuals need both output and installation flexibility.

There is an important power detail for planners: Epson states that the EB-PQ2220B can operate at 16,000 lumens from a standard 120-volt power source. Buyers planning around the full rated output should therefore review venue power requirements with their integrator rather than assuming every outlet can support the same operating mode.

What should buyers budget beyond the projector body?

The lens is a separate part of the system. Epson offers optional powered lenses for the EB-PQ family, including short-throw and ultra-short-throw choices, so the correct lens depends on throw distance, screen size and installation geometry. Mounting or stacking hardware, signal distribution, calibration and control equipment can also be significant parts of the installed cost.

The optional PixAlign camera adds assisted tools for multi-projector work, including edge blending, geometry assistance, automatic color calibration and screen matching. Those features are useful for large blended canvases, but buyers should treat them as part of an engineered system rather than expect a simple desktop-projector setup.

How does it compare with other EB-PQ models?

The EB-PQ2220B is the 20,000-lumen option. Buyers who do not need that much output can step down within the same family to 16,000-, 13,000-, 10,000- or 8,000-lumen models while retaining the EB-PQ approach to 4K large-venue projection. Choosing the right tier can reduce acquisition cost, power demand and installation overhead.

If the project mainly needs a portable or fixed-lens display for a classroom or meeting space, Epson's PowerLite ranges are a better fit. Home theater buyers should not pay for this venue-oriented platform; Epson's Q-Series, Pro Cinema and Lifestudio products are designed for entertainment environments.

Who should choose something else?

Small venues, straightforward conference rooms and buyers without access to professional installation should start elsewhere. The EB-PQ2220B is most compelling when its 20,000-lumen output, interchangeable lenses, sealed optical design and multi-projector capabilities solve a real project requirement.

It is also not the automatic choice for every large venue. If a 13,000- or 16,000-lumen model meets the screen and ambient-light target, that lower tier may be the more sensible system. A projection study that accounts for screen gain, throw distance, ambient light and content type is more useful than choosing from brightness alone.
