EB-PQ2216B

About EB-PQ2216B

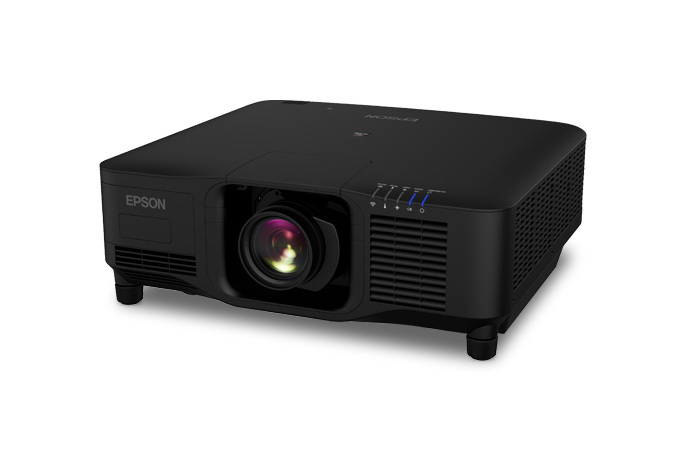

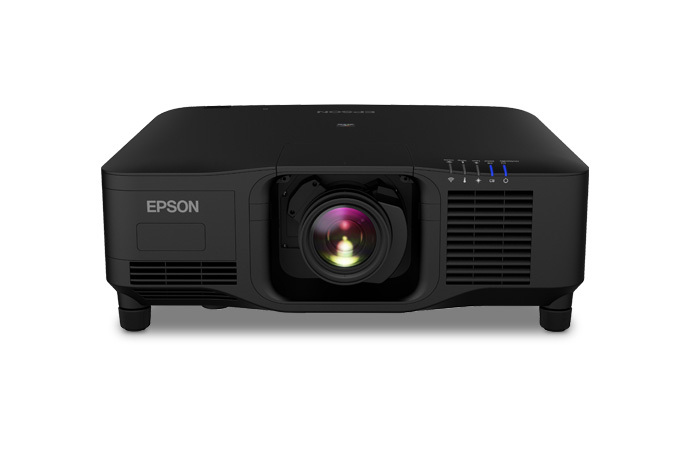

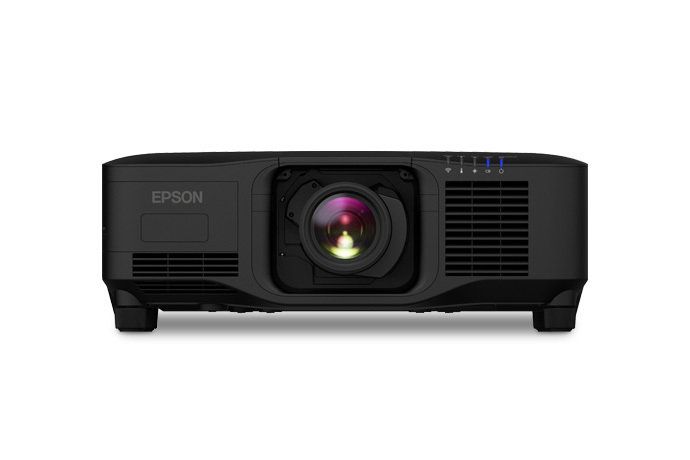

The Epson EB-PQ2216B is the 16,000-lumen black model in Epson's EB-PQ large-venue family. It is aimed at theaters, auditoriums, museums, immersive spaces, live events and other installations where a conventional business projector does not have enough light or installation flexibility. Epson pairs its 3-chip 3LCD system with 4K Crystal Motion processing to produce a 3840 x 2160 image on screen, while an interchangeable-lens design lets integrators choose optics for the room instead of designing the room around a fixed lens.

Where does the EB-PQ2216B fit in the EB-PQ range?

This model sits below the 20,000-lumen EB-PQ2220B and above the 13,000-lumen tier. That makes it a useful middle choice for buyers who need substantially more output than Epson's 8,000- and 10,000-lumen EB-PQ models but do not need the highest-output chassis.

The 16,000-lumen rating applies to both white and color brightness. For buyers comparing large-venue systems, that is useful because screen size, ambient light and projection surface can make a lower-output projector look washed out even when its resolution is adequate.

What image technology does it use?

Epson uses 3-chip 3LCD imaging and its 4K Crystal Motion technology, along with a thermo-controlled panel and double micro-lens array. Epson specifies 4K resolution on screen at 3840 x 2160. The projector also supports HDR, frame interpolation and scene adaptive gamma correction, features intended to improve demanding video and fast-moving material rather than simply enlarge presentation slides.

The laser light source is rated for up to about 20,000 hours in normal operation. As with any projector, actual useful life and brightness depend on operating mode, environment and usage.

What should an installer budget beyond the projector body?

The lens is not included. Epson supports nine optional powered lenses for this model, so the correct lens must be selected around throw distance, screen size and installation geometry. Mounting hardware, signal distribution, control equipment and professional calibration can also be meaningful parts of the installed cost.

For multi-projector work, Epson offers an optional attachable PixAlign camera to assist with workflows such as complex projection alignment. Built-in NFC is also intended to simplify setup and management in professional deployments.

What are the important installation limitations?

Power is an important planning detail. Epson states that the EB-PQ2216B requires a 220 V power cord for full operation and performance. A 120 V connection can be used temporarily for setup, but projected brightness is limited and some light-source functions are unavailable. A venue should therefore confirm the electrical plan before specifying this projector.

The chassis is designed for demanding use, with a filterless cabinet, an IP5X-rated hermetically sealed optical and light-source module, liquid cooling and a laser source that avoids routine lamp replacement. Those features reduce maintenance concerns, but they do not remove the need for proper installation, ventilation and access planning.

Who should choose the EB-PQ2216B?

It makes sense for integrators and venue operators who need a black projector for high-brightness fixed installation, rental and staging, immersive environments or large presentation surfaces. The black chassis is particularly useful where the projector itself should visually disappear in a dark ceiling, theater or event environment.

Buyers should size brightness around the actual room. If 8,000 or 10,000 lumens is sufficient, the EB-PQ2008B or EB-PQ2010B can reduce power demand and project cost. If the screen, ambient light or projection mapping design genuinely needs more headroom, the EB-PQ2220B moves up to 20,000 lumens.

Who should buy something else?

Small classrooms, ordinary meeting rooms and portable presenters should generally look elsewhere. The interchangeable lenses, large-venue installation features and electrical requirements add cost and complexity that provide little benefit in a modest room.

Home theater buyers should also choose a consumer-focused Epson range such as Q-Series or Pro Cinema. Those products are designed around residential entertainment priorities, while the EB-PQ2216B is fundamentally a professional venue projector. Buyers who need a white chassis should consider the corresponding EB-PQ2216W rather than compromising the room design.
