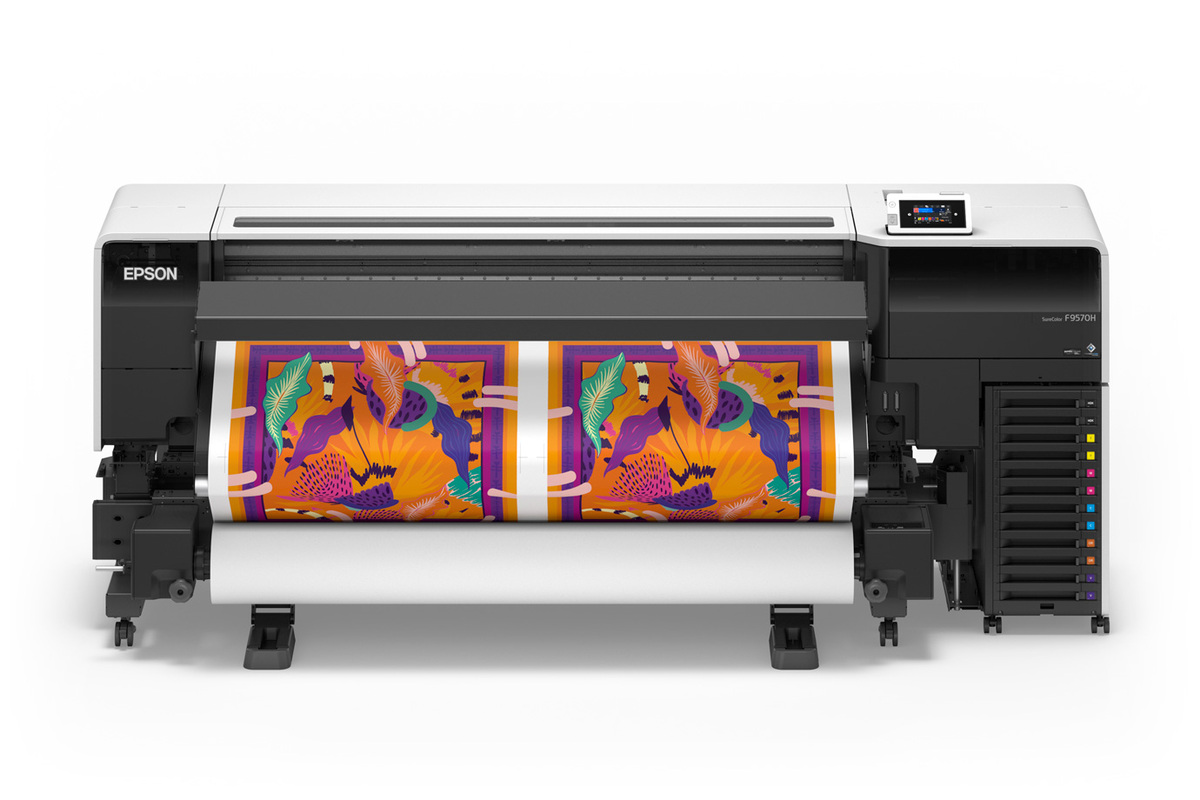

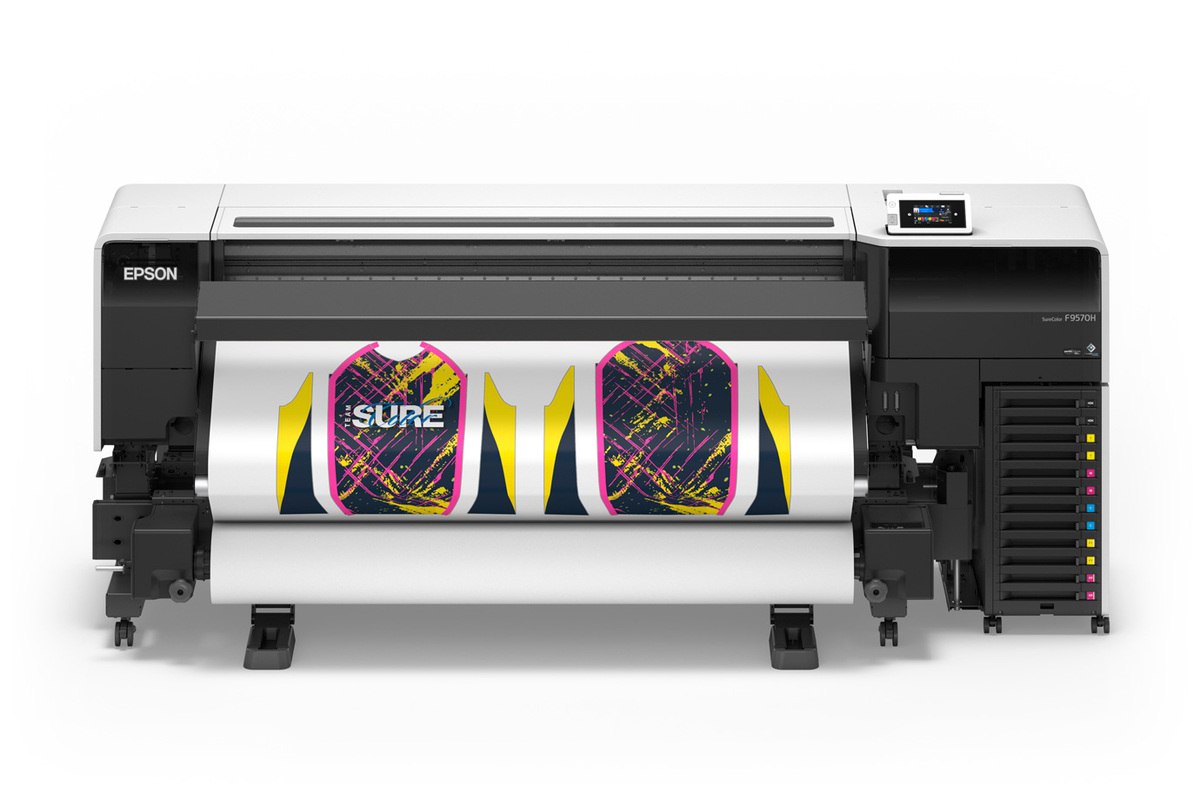

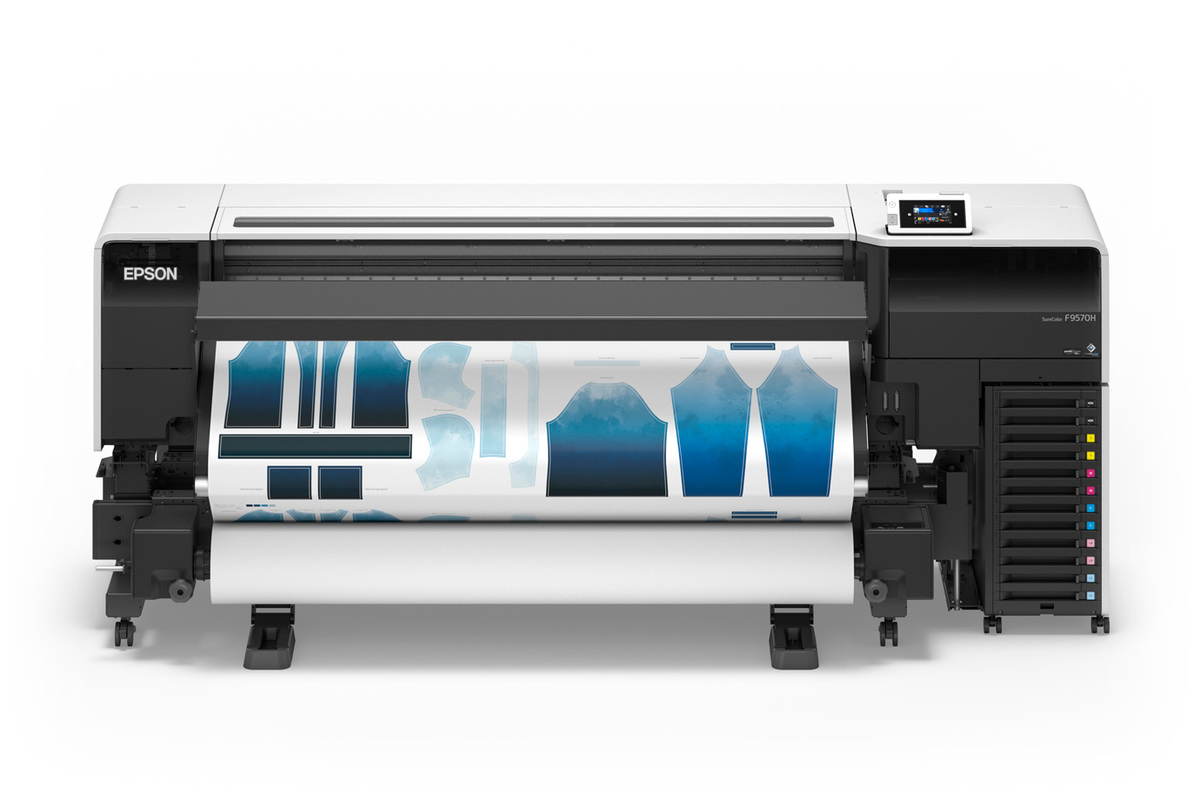

About SureColor F9570H
The SureColor F9570H is Epson's 64-inch, six-color dye-sublimation production printer for shops that need the speed of the F9570 platform but want more control over color. It is aimed at established apparel, soft-signage, decor and promotional-product businesses rather than occasional transfer printing. The key decision is not simply F9570H versus F9570. It is whether your work can earn back the added cost of a six-color configuration through smoother gradients, fluorescent output or a wider color gamut.
Key specifications
Printing
| Maximum media width | 64 inches |
|---|---|
| Maximum resolution | 600 x 1200 dpi |
| Rated print-engine speed | Up to 1,590 ft2/hr |
Ink
| Ink system | UltraChrome DS, 6 colors |
|---|---|
| Color configurations | CMYK + LC/LM, FP/FY, or Orange/Violet |
| Ink pack capacity | 1,600 ml per color |
Hardware
| Printhead | User-replaceable 2.6-inch PrecisionCore Micro TFP with Nozzle Verification Technology |
|---|---|
| Control panel | 4.3-inch touchscreen |
Physical
| Dimensions | 103.1 x 36.6 x 40.2 inches (W x D x H) |
|---|---|
| Weight without ink | Approximately 720.9 lb (327 kg) |
Workflow
| Included workflow software | Epson Edge Print PRO; Wasatch SoftRIP 3-month prepaid subscription with Production Edition |
|---|
Support
| Standard warranty | 1-year Epson limited warranty |
|---|
What makes the F9570H different from the F9570?
Both printers share Epson's production-focused platform, including a user-replaceable 2.6-inch PrecisionCore Micro TFP printhead, Nozzle Verification Technology, a hot-swappable 1.6-liter ink-pack system and rated print-engine speeds up to 1,590 square feet per hour. The F9570H adds two ink channels. Buyers select CMYK plus Light Cyan and Light Magenta, Fluorescent Pink and Fluorescent Yellow, or Orange and Violet. That choice matters because Epson states that users cannot change the selected ink type later. Light Cyan and Light Magenta suit work where smooth tonal transitions matter. Fluorescent Pink and Yellow target vivid sportswear, fashion and promotional graphics. Orange and Violet extend the available gamut for jobs where those colors are commercially useful.
Where does it fit in a production shop?
This is a transfer dye-sublimation printer, so the workflow normally includes printing to transfer media and using suitable heat-transfer equipment for the final substrate. Epson positions it for apparel, promotional products, soft signage and decor. The 64-inch width makes more sense for a production floor than a small craft room. Epson lists the printer at about 720.9 lb without ink, so installation, access, electrical service and material handling should be planned before delivery. The 4.3-inch touchscreen and accessible maintenance area are useful day to day, while Epson Cloud Solution PORT can provide remote production and utilization monitoring when an internet connection is available.
How fast is the SureColor F9570H?
Epson rates print-engine speed at up to 1,590 square feet per hour. That figure is useful for comparing the platform, but it is not a promise that every job will finish at that rate. Epson notes that actual throughput depends on factors including workstation configuration, file size, resolution, ink coverage and networking. Buyers should test representative files and media when estimating real production capacity.
What does it cost?
Epson currently lists the SureColor F9570H Production Edition at $34,995 in the United States. That is also the MSRP Epson announced when the model launched in August 2024. For a commercial purchase, hardware price is only one part of the budget. Include transfer paper, genuine Epson ink packs, heat-transfer equipment, ventilation or workflow requirements, service coverage, labor and the floor space needed around the printer. Epson includes a one-year limited warranty and offers extended service plans.
What are the main limitations?
The biggest limitation is the permanent ink-configuration decision. A shop cannot buy the fluorescent configuration and casually switch the extra channels to Orange and Violet for another client. That makes job mix and expected demand important before ordering. It is also a large, heavy production machine with meaningful power and downstream heat-transfer requirements. A smaller shop without consistent dye-sublimation volume may spend less overall with a lower-tier F-Series model. The quoted top speed is a print-engine figure, not guaranteed end-to-end throughput.
Who should choose something else?
Choose the four-color F9570 if CMYK output covers your work and the extra color channels are unlikely to create billable value. Consider a smaller F-Series printer when 64-inch media and high-volume production are unnecessary. Shops focused on direct-to-garment or direct-to-film apparel should compare Epson's purpose-built garment printers instead, because the F9570H is a transfer dye-sublimation system. Sign businesses printing directly to conventional signage media should compare Epson's signage-focused SureColor ranges rather than forcing a dye-sublimation workflow into the wrong application.
Is the F9570H still a current buy in 2026?
Yes. Epson launched the F9570H in 2024 and continues to sell it directly in its current U.S. professional printing catalogue. It also received a 2026 PRINTING United Alliance Pinnacle Product Award in the roll-to-roll dye-sublimation textile category under $50,000. For buyers, the more important point is that Epson still provides current product, support and consumables information. A production shop should still compare dealer service response, current incentives and the exact ink configuration before signing an order.
