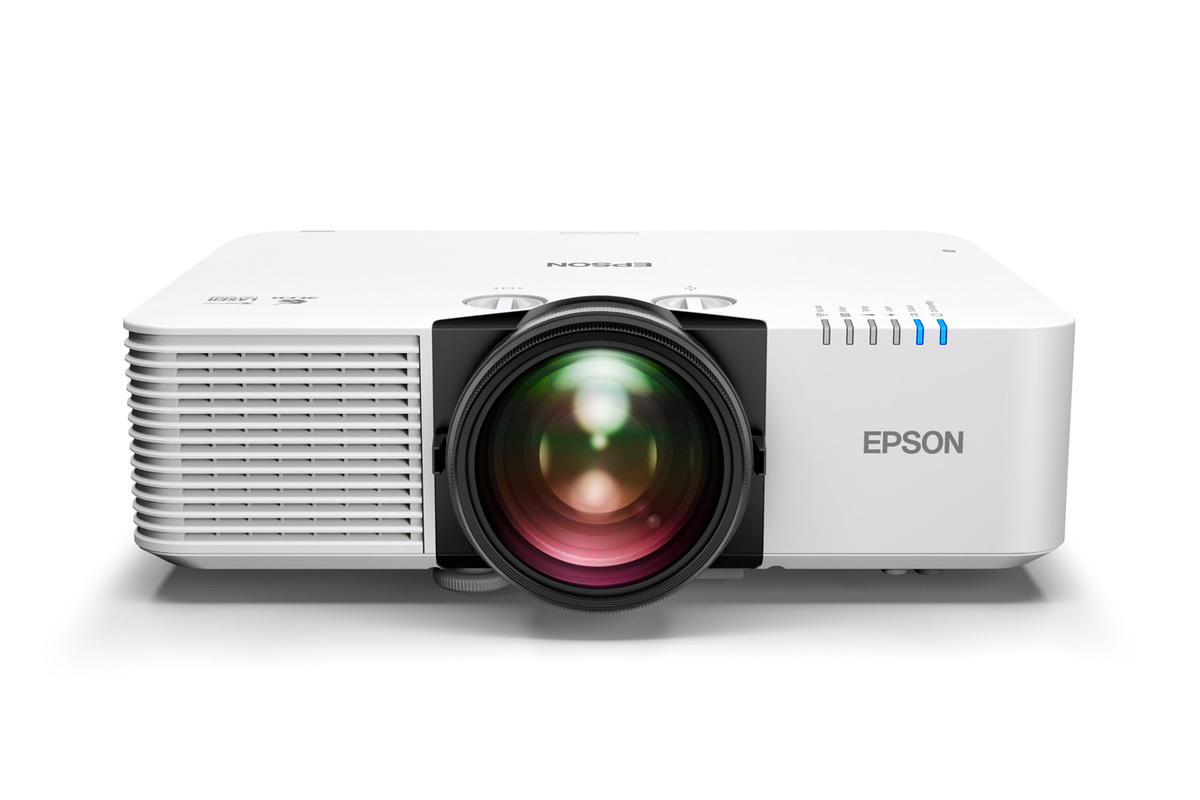

About PowerLite L690SE
The Epson PowerLite L690SE is a compact short-throw laser projector for buyers who need a bright, very large image from a relatively close mounting position. Epson introduced it in February 2025 as part of its expanded PowerLite L-Series and now sells it in the United States. It combines 6,000 lumens of equal color and white brightness, WUXGA 1920 x 1200 panels, 4K Enhancement and a 0.5 to 0.7 throw ratio. That combination makes it especially relevant for classrooms, conference spaces, museums, simulation rooms, floor projection and rear-projection installations where a conventional standard-throw projector would need more distance.
Key specifications
Imaging
| Display technology | 3-chip 3LCD |
|---|---|
| Color brightness | 6,000 lumens |
| White brightness | 6,000 lumens |
| Panel resolution | WUXGA 1920 x 1200 |
| Detail technology | 4K Enhancement |
Projection
| Throw type | Short throw |
|---|---|
| Throw ratio | 0.5 - 0.7 |
| Optical zoom | 1.4x |
| Maximum display | Up to 500 inches diagonal in 16:10 |
| Ultra-wide formats | 16:6 and 21:9 |
Installation
| Mounting | 360-degree mounting and universal VESA mounting pattern |
|---|---|
| Configuration | NFC and built-in geometric correction tools |
Light source
| Type | Laser |
|---|---|
| Extended Mode interval | Up to 30,000 hours for laser light source and air filter |
Connectivity
| Professional AV | HDBaseT and HDMI connectivity |
|---|
Wireless
| Apple AirPlay | Not included on L690SE according to Epson's June 2025 availability announcement |
|---|
Model
| Epson model number | V11HB36020 |
|---|
Price
| Epson US listed price | $5,710 at research time |
|---|
Where the PowerLite L690SE fits
The L690SE sits in a distinctive part of Epson's current fixed-lens PowerLite range. Its 6,000-lumen output is below the 7,000-lumen L790SE and the 8,000-lumen L890 models, but its lens reaches a much shorter 0.5 to 0.7 throw ratio. Epson pairs that lens with 1.4x optical zoom, wide vertical and horizontal lens shift, geometric correction and 360-degree mounting. For buyers, the main question is therefore not simply how many lumens they can buy. The L690SE makes the most sense when placement flexibility and a shorter projection path matter as much as raw brightness.
Brightness, resolution and 4K Enhancement
Epson rates the L690SE at 6,000 lumens for both color and white brightness using its 3-chip 3LCD system. The projector uses WUXGA 1920 x 1200 imaging panels and accepts up to a 4K signal. Epson's 4K Enhancement technology increases displayed detail, but buyers should not confuse that with native 4K panels. That distinction matters when comparing specifications across projector classes. For presentations, diagrams, simulation content, signage and large educational visuals, the combination of WUXGA and 4K Enhancement is designed to improve apparent detail while preserving the high brightness needed in commercial rooms.
Short-throw installation and image size
The 0.5 to 0.7 throw ratio is the L690SE's defining feature. It can create a large image from a shorter distance than Epson's standard-throw L690E or L690U, reducing the amount of room needed between projector and screen. Epson supports displays up to 500 inches diagonal in 16:10 and also supports 16:6 and 21:9 ultra-wide formats. The 1.4x optical zoom gives installers more adjustment than a fixed short-throw lens. Even so, buyers should calculate the exact throw distance, screen size and lens-shift requirements before ordering mounts because short throw does not mean every mounting position will work.
Where it works best
Epson specifically positions the L690SE for uses including floor and rear projection, golf simulation and museum exhibitions, in addition to business and education spaces. Those are sensible examples because a shorter throw can keep equipment closer to the display surface and reduce unwanted shadows. The projector can also suit lecture and collaboration rooms where ceiling depth is limited. For an ordinary meeting room with plenty of mounting distance, however, a standard-throw model can be a simpler and less expensive choice. Buyers should pay for the short-throw lens because their room benefits from it, not merely because the specification sounds more advanced.
Connectivity and management
The L690SE includes the connectivity expected from Epson's current professional L-Series, including HDMI, HDBaseT, network control and wireless features used with Epson's management and projection software. Epson's June 2025 availability announcement makes one important distinction: the L690SE and L695SE are available without built-in Apple AirPlay functionality, while several other new L-Series models support AirPlay 2. Buyers planning an Apple-heavy wireless presentation workflow should account for that difference rather than assuming every 2025 L-Series projector has identical casting support.
Maintenance and installation tools
Epson specifies up to a 30,000-hour laser light source and air-filter maintenance interval in Extended Mode. This reduces routine lamp replacement compared with older lamp-based projectors, but the figure should be treated as an operating-life reference under Epson's stated conditions rather than a promise of unchanged brightness. Built-in NFC can help configure installations, and Epson supports its optional PixAlign camera for tasks such as screen matching, color calibration, blending and stacking. These tools become more valuable when an organization is deploying several projectors rather than a single standalone room.
PowerLite L690SE vs L790SE and L690U
The L790SE is the stronger comparison when a buyer wants short throw but needs more brightness. It is rated at 7,000 lumens and uses a 0.79 to 1.36 throw ratio with 1.7x optical zoom, so it does not sit as close to the image as the L690SE but offers more light output. The L690U takes the opposite approach: it provides 6,500 lumens and native WUXGA with a standard 1.35 to 2.20 throw ratio. The L690SE is therefore the more specialized option when the shortest projection distance is a central requirement and 4K Enhancement is useful.
Price and buying considerations
Epson US currently lists the PowerLite L690SE at $5,710. That price places it above several standard-throw L-Series models because the specialized short-throw optical system is part of what the buyer is paying for. Project budgets should also include the screen or projection surface, mount, signal distribution, cabling, control hardware and installation labor. Education buyers should check Epson's Brighter Futures program, while commercial customers can obtain quotes through authorized Epson resellers. Pricing can change, so the current Epson figure is best treated as a reference rather than a permanent street price.
Who should choose something else
Choose a standard-throw PowerLite such as the L690U when the room has enough projection distance and the short-throw lens would add cost without solving a real problem. Consider the L790SE when short throw is still required but 7,000 lumens better suits the room. Buyers who specifically require built-in Apple AirPlay should compare the other 2025 L-Series models that Epson identifies as AirPlay-compatible. Home cinema buyers should use Epson's Home Cinema or Pro Cinema ranges instead, because the L690SE prioritizes commercial brightness, installation flexibility and fleet operation rather than cinematic black levels and residential HDR viewing.
